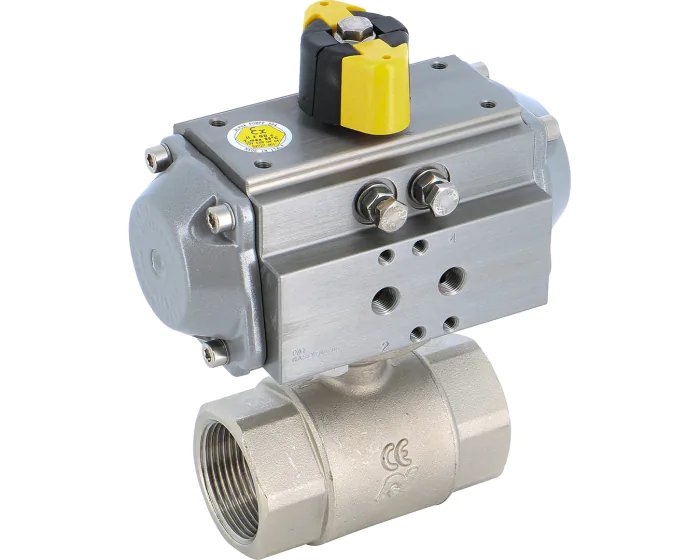

The 502 series ball valve has a CW617N brass body and ball and PTFE seats. It is actuated with an ALPHAIR double acting or spring return pneumatic actuator. ACS approved from 1/2'' to 4''. PS: 16 bar, TS: 100°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Brass 614N |
| Adjustable limit screws | Yes |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 63.5 |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | NBR |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Brass CW617N |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' Double acting | 270002017004R | S1000020 |
€155.53
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' Spring return | 270002017104R | S1000021 |
€178.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' Double acting | 270003017004R | S1000022 |
€157.00
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' Spring return | 270003017106R | S1000023 |
€208.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' Double acting | 270004017004R | S1000024 |
€157.00
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' Spring return | 270004017107R | S1000025 |
€219.47
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 Double acting | 270005017006R | S1000026 |
€184.17
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 Spring return | 270005017108R | S1000027 |
€280.69
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 Double acting | 270006017007R | S1000028 |
€223.57
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 Spring return | 270006017109R | S1000029 |
€351.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' Double acting | 270007017008R | S1000030 |
€289.13
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' Spring return | 270007017110R | S1000031 |
€551.61
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 Double acting | 270038017008R | S1000032 |
€375.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 Spring return | 270038017110R | S1000033 |
€556.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' Double acting | 270039017009R | S1000034 |
€488.61
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' Spring return | 270039017111R | S1000035 |
€739.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' Double acting | 270040017010R | S1000036 |
€816.30
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' Spring return | 270040017111R | S1000037 |
€1,015.04
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body Double acting DN8 - 1/4'' | 270090017004R | S1000038 |
€167.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body Double acting DN10 - 3/8'' | 270091017004R | S1000039 |
€168.17
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body Spring return DN10 - 3/8'' | 270091017104R | S1000040 |
€190.83
(excl. btw)
|
add to cart |
